AC Capacitors Type Test Setup

Our Products & Services

AC Capacitors Type Test Setup

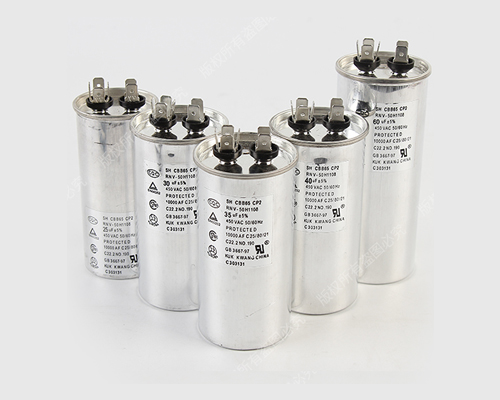

AC capacitors are widely used in electric motors, washing machines, air conditions, coolers, UPS etc. Out high quality AC capacitors are known for their low capacitance drift, good insulation properties, vibration free operation mode, burst proof construction design, fore resistance, and self handling design.

The AC capacitors are available in various sizes, you can specify your needs and get customized products as well. We manufacture Routine Test Type Setup as per IEC 60252-1, IEC 60252-2, IS-2993, IS-1709 for AC capacitors standards and customers specific requirements.

We cater following test setups:

  • Voltage test between terminals Test Setup
  • Voltage test between terminals and case Test Setup
  • Long Endurance Test Setup
  • Self-healing Test Setup
  • Destruction Test Setup

Specification:

As Per IS 2993 (For Motors), IS 1709 (For Fans)

IS

:

1569 (For Lighting Fixture)

Range

:

1 Mfd to 252 Mfd & Dual Rating

Tolerance

:

+5%/ + 10%

Rated Voltage

:

230V/415V/440V600 VAC

Voltage Test:

Between Terminals

:

1.5x Rated Voltage AC

Between Body & Terminals

:

2000 VAC

Dissipation Factor:

Tan Delta

:

0.0002 at 100 Hz

Temperature Range

:

-25°C to 85°C

Self Healing

:

In the Event of Dielectric Puncture

The Capacitors Self-Heals without Singnificant Change in Capacitance or in other Electrical Parameter
