PFC Capacitors Type Test Setup

PFC Capacitors Type Test Setup

The rational use of electrical energy calls for economical generation, transmission and distribution with little losses. Static capacitive compensation devices reduce the lagging reactive power component transmitted over the network. If grid conditions change, the required power can be matched in steps by adding or taking out single power capacitors (automatic PFC) for compensation. We manufacture Routine Test Type Setup as per IS-13304, IEC 60831-1/2. For PFC Capacitors (Shunt Power capacitors of the self-healing type for AC system having a rated voltage up to and including 1000v.) standards and customers specific requirements.

We cater following test setups:

Benefits of power factor correction:

The awareness of power quality is increasing, power factor correction (PFC) and harmonic filtering will be implemented on a growing scale. Enhancing power quality – improvement of power factor – saves costs and ensures a fast return on investment.

Power Quality Products:

Power quality solutions offer all key components for an effective PFC system from a single source. This includes power factor controllers, multi measuring interfaces, capacitor contractors, thyristor modules for dynamic PFC and discharge reactors.

Highlights:

Overview:

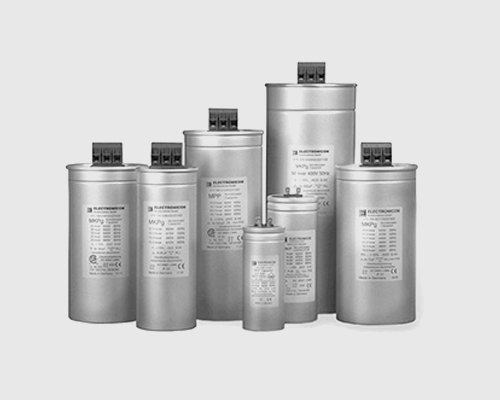

PhaseCap capacitors in cylindrical aluminum cases have been designed for power factor correction in low-voltage applications. Loads like motors and transformers consume active power as well as reactive power. Generators, supply cables and other electrical distribution equipment, in turn, should be relieved of reactive power. The MKK (metalized plastic compact) AC series is intended to increase packing density per bank and cut component costs. Improved thermal response and simplified installation are advantages of the cylindrical aluminum case.
